Pimp My System / My all electric brewing system
« on: February 16, 2010, 12:40:41 PM »

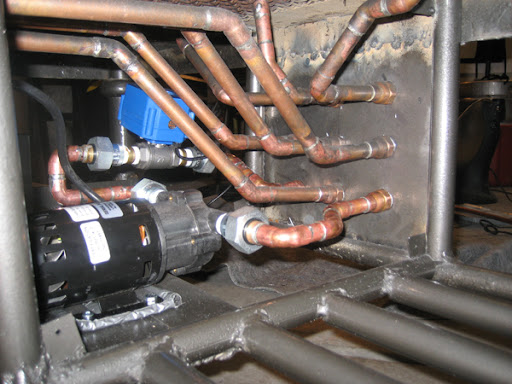

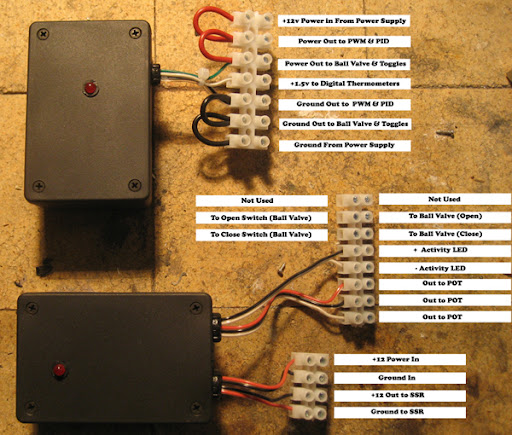

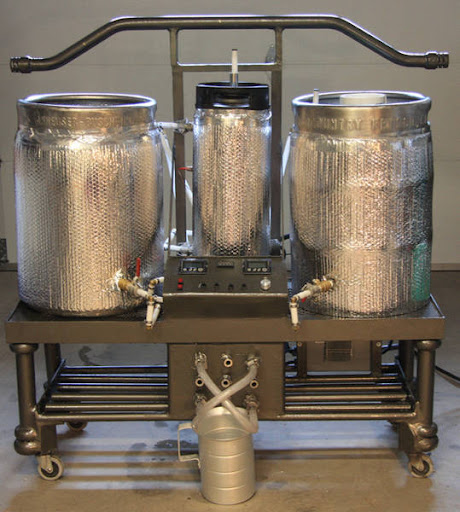

I have recently completed my brewing system. It is a single tier, three vessel system. The boil kettle is powered by a 5500 watt element, and controlled by PWM circuit with a dial that I made. The Heat exchanger is powered by a 1500 watt element and controlled by a PID controller. I have created a flow manifold on the front to control where the flow from my pump is going. I incorporated an electric ball valve on the output of the pump to control flow for recirculation. I tried to keep the profile small and compact and in doing so used a hard plumbing concept with quick release camlock fittings to make it easy to remove the vessels for cleaning. Here is my baby.








You can see my entire build thread on homebrewtalk.com

http://www.homebrewtalk.com/f51/how-about-another-e-rig-150992/
